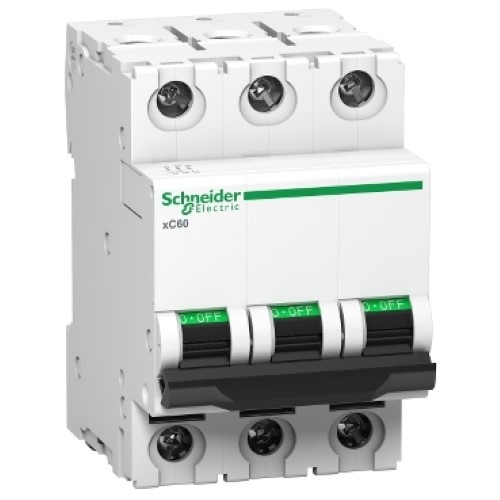

miniature circuit breaker – xC60 – 3
poles – 6 A – C curve
A9N3P06C
Main
Device application Distribution
Range of product Acti9
Range Acti9
Product name XC60
Product or component type Miniature circuit-breaker
Device short name xC60
poles description 3P
Number of protected poles 3
[In] rated current 6 A
Network type DC
AC
Trip unit technology Thermal-magnetic
Curve code C
Utilisation category Category A conforming to EN/IEC 60947-2
Suitability for isolation Yes conforming to EN/IEC 60947-2
Complementary
Network frequency 50/60 Hz
[Ue] rated operational voltage 240 V AC 50/60 Hz
380…415 V AC 50/60 Hz
100…125 V DC
Magnetic tripping limit 8 x In +/- 20 %
Breaking capacity 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
15 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at 100…125 V DC conforming to EN/IEC 60947-2
[Ics] rated service breaking
capacity
7.5 kA conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz
15 kA conforming to EN/IEC 60947-2 – 100…125 V DC
Limitation class 3 conforming to EN/IEC 60898-1
3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand
voltage
6 kV conforming to EN/IEC 60947-2
Contact position indicator Yes
Control type Toggle
Local signalling ON/OFF indication
Product datasheet
Specifications
22-Sept-2024 1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
mounting mode Clip-on
Mounting support 35 mm DIN rail
Comb busbar and distribution
block compatibility
Top: YES
9 mm pitches 6
Height 85 mm
Width 54 mm
Depth 77.5 mm
Net weight 0.31 kg
Colour White
Mechanical durability 20000 cycles
Electrical durability 20000 cycles
Connections – terminals Tunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (top)
Wire stripping length 13 mm for top or bottom connection
Tightening torque 2 N.m
Earth-leakage protection Separate block
Product compatibility C60 accessories
C60 auxiliary
Overvoltage category IV
Environment
Standards EN/IEC 60898-1
EN/IEC 60947-2
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 3
Tropicalisation 2 conforming to IEC 60068-1
Relative humidity 95 % at 55 °C
Ambient air temperature for
operation
-30…70 °C
Ambient air temperature for
storage
-40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.2 cm
Package 1 Width 7.8 cm
Package 1 Length 8.4 cm
Package 1 Weight 320 g
2 22-Sept-2024
Sustainability
Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-inclass environmental performance. Green Premium promises compliance with the latest regulations,
transparency on environmental impacts, as well as circular and low-CO2 products.
Guide to assessing product sustainability is a white paper that clarifies global eco-label
standards and how to interpret environmental declarations.
Sustainable Packaging Transparency RoHS/REACh
Resource performance
Sustainable Packaging
Well-being performance
Rohs Exemption Information Yes
Halogen Free Plastic Parts & Cables
Product
Certifications & Standards
Reach Regulation REACh Declaration
Eu Rohs Directive Compliant with Exemptions
China Rohs Regulation China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure Product Environmental Profile
Circularity Profile No need of specific recycling operations
Learn more about Green Premium arrow2_right
Guide to assess a product’s sustainability arrow2_right



22-Sept-2024 3
